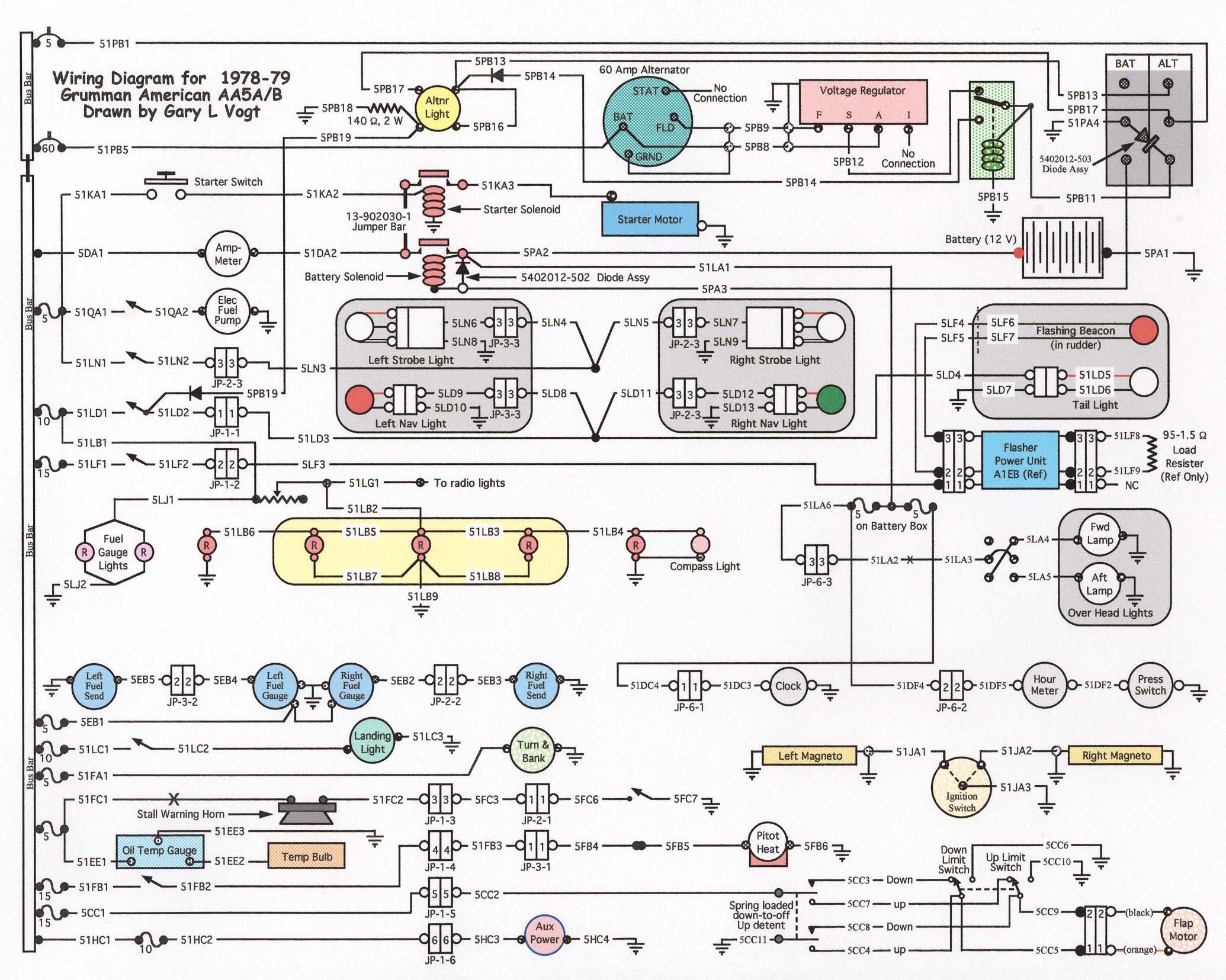

I originally drew this wiring diagram about 1987. I made it for a 77 Cheetah since that is what I had. After updating it from the original 1977 version, I added the over-voltage stuff for the later Grummans. Again, this is a scan since I can scan to higher resolution than Photoshop will save it from the drawing.
