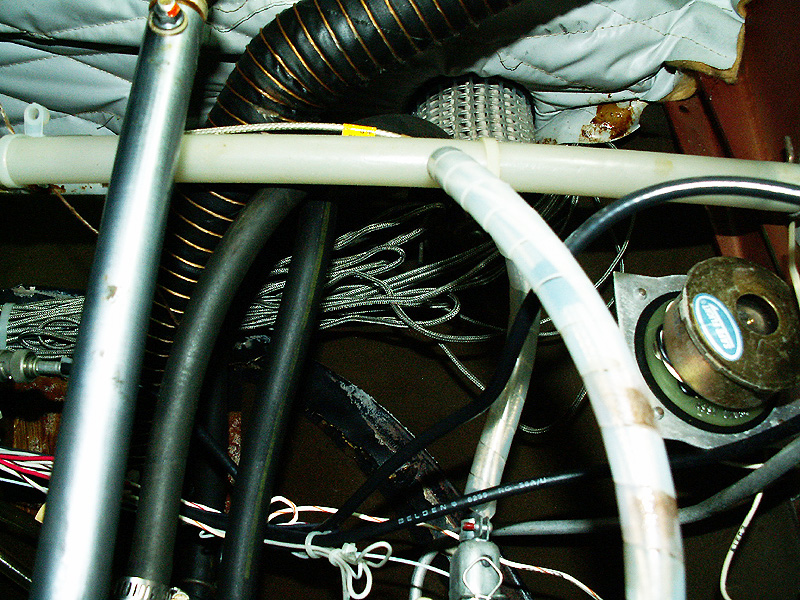

. . . .Here is another shot of those wires under the panel.  This plane, N28911, got an EI-ectomy and a new JPI 700 with fuel flow.  The installation was orders of maginitude cleaner.
EI Unit:
EI wires (01):
EI wires (02):
EI Firewall side:		 w/ ONLY the EGT and CHT wires
This is under the panel
This is also under the panel
EI wires before being tied together		 JPI Unit:
JPI Wires:
JPI Firewall side:
Top View:

w/ CHT, EGT, Fuel Flow and GPS data wires
The yellow cable is almost all of the wiring for the JPI
This is on the outside.
Another view on the outside.
